Kinetograph & Kinetoscope

A Scottish heritage, born on French soil

William Kennedy Laurie Dickson was born on 3 August 1860 at Le Minihic-sur-Rance, a village on the River Rance in Brittany, north-west France. His Scottish identity is real, but it runs through his mother. Elizabeth Kennedy-Laurie was born at Portobello, near Edinburgh, on 31 December 1821, daughter of William Baillie Kennedy Laurie of Woodhall in Kirkcudbrightshire — descended from the Lauries of Woodhall, the family immortalised in the ballad 'Annie Laurie'.

Here we must do exactly what ScottishInventions.com prizes: separate fact from legend. Wikipedia and others describe his mother as 'American, born in Virginia'. She only died in Virginia, in 1879; even her Virginia death register records her birthplace as 'Scotland'. His father, James Waite Dickson, is routinely called a 'Scottish astronomer' — in fact a published artist and lithographer born in Liverpool. The romantic family claim of 'direct lineage from the painter William Hogarth' is demonstrably false: Hogarth had no children. He was, strictly, French-born of British descent, with a Scottish mother and an English father — and he carried both family names, Kennedy and Laurie, all his life.

In 1879, aged 19, Dickson wrote a striking letter to Thomas Edison describing himself as 'a friendless and fatherless boy' and offering 'patience, perseverance, an ardent love of science, and above all a firm reliance on God'. He was turned down. Undeterred, he, his mother and two sisters emigrated to the United States that same year. Largely self-taught in mechanics and photography, in 1883 he finally secured a job with Edison and rose quickly to become the company's official photographer.

The problem — capturing moving images

By the 1880s, still photography was mature: Daguerre had unveiled the daguerreotype in 1839, and Fox Talbot's paper-negative process followed in the 1840s. But these were frozen instants. In June 1878, at Palo Alto, the English-born photographer Eadweard Muybridge used a bank of trip-wire-triggered cameras to photograph a galloping horse, proving for the first time that all four hooves leave the ground at once. Around 1879 he built the Zoopraxiscope, which projected painted versions of his sequences from a spinning glass disc — a true ancestor of the projector, but not a motion-picture camera.

The technical mountain was steep. To make real movies you needed: a flexible film that could be moved rapidly through a camera; a mechanism to halt each frame for a fraction of a second while it was exposed; and a way to view or project the result. The missing material arrived in 1889, when George Eastman's company put flexible celluloid roll film on sale. Eastman's transparent 70mm stock was the raw material the early experimenters seized upon. Eastman provided the medium; Dickson would provide the machine.

The invention — the Kinetograph and the Kinetoscope

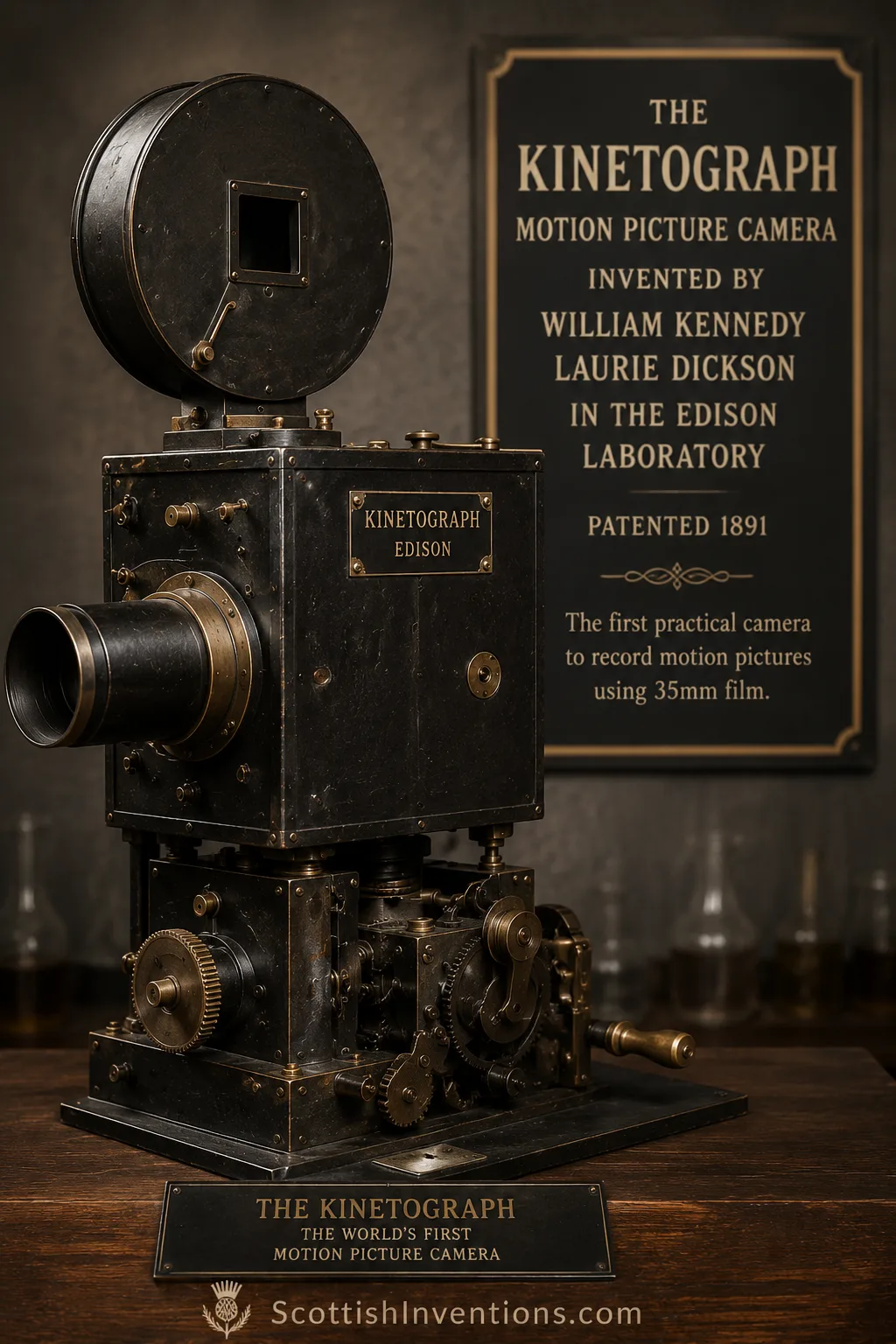

Inside Edison's West Orange laboratory, Dickson built the world's first practical motion picture camera, the Kinetograph, patented in 1891. It pulled Eastman's celluloid film past the lens with a toothed sprocket engaging perforations along the film's edges, stopping every frame in front of the shutter for a precise fraction of a second. It was the first machine that could reliably record moving images on film.

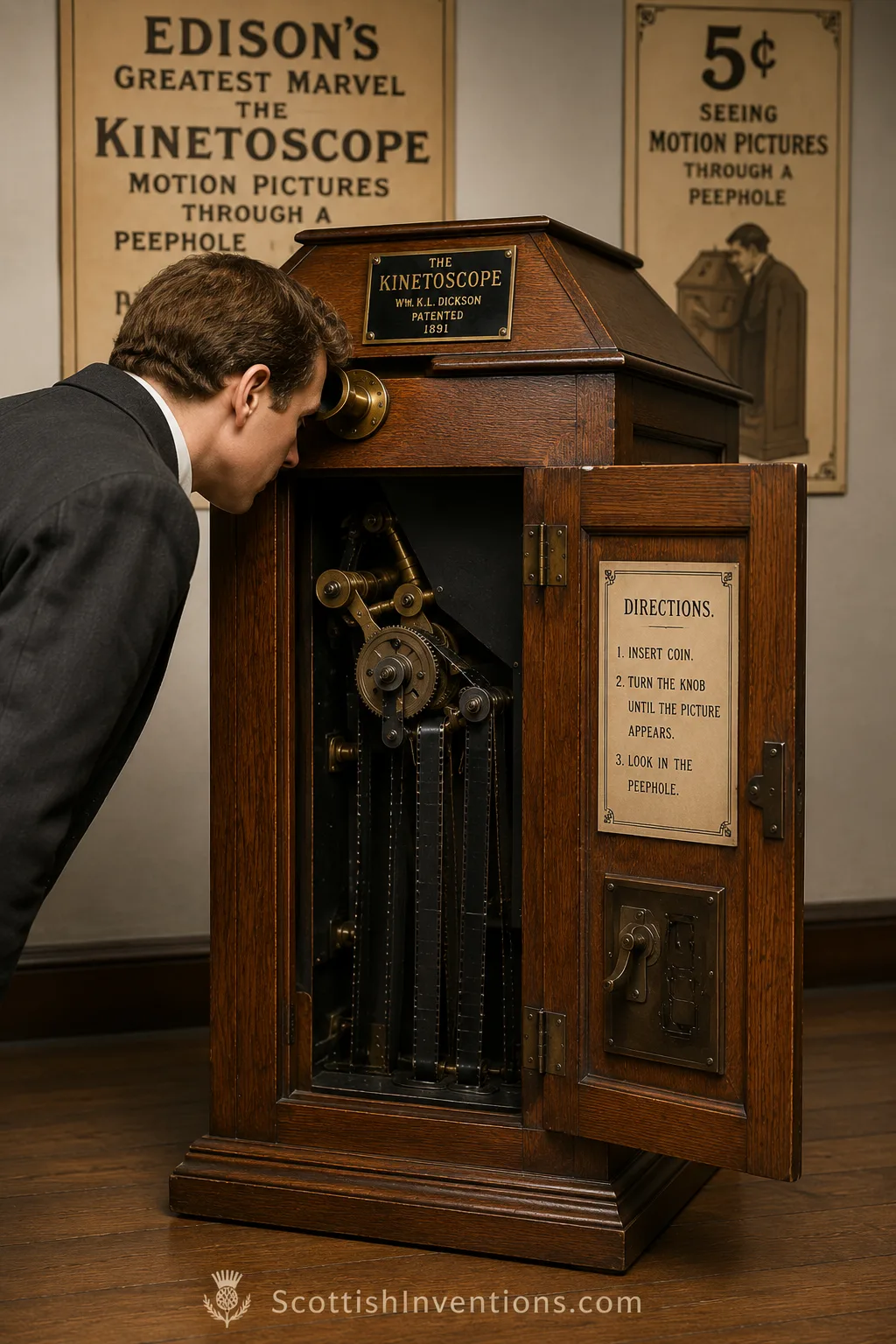

Its companion, the Kinetoscope, was the playback device — a tall oak cabinet through which the developed film passed under a magnifying lens and an electric lamp. The completed Kinetoscope was unveiled at the Brooklyn Institute of Arts and Sciences on 9 May 1893, and on 14 April 1894 the first commercial Kinetoscope parlour opened at 1155 Broadway, New York, run by the Holland Brothers. Patrons paid 25 cents to view a row of machines. Within months, Kinetoscope parlours opened across America and Europe. Cinema as a paying business had begun.

The Kinetoscope — a peephole, not a projector

Crucially, the Kinetoscope was emphatically not a projector. It was a peephole cabinet that played a short loop of film for one viewer at a time. You leaned over the top, looked down through a small lens, and watched a strongman, a dancer or a sneeze flicker past your eye — alone, in private, for the price of a coin. The shared, theatrical experience of cinema as we know it was still to come.

Here Dickson filmed the short subjects that became cinema's first content — strongman Eugene Sandow, the dancer Carmencita, Annie Oakley, boxing matches, 'Fred Ott's Sneeze' and circus acts. The very first film shown to the public was Dickson Greeting (filmed 20 May 1891), a three-second clip of Dickson himself bowing and passing a hat from hand to hand. It was screened to 147 members of the National Federation of Women's Clubs at the Edison lab, and survives today in the Library of Congress.

The Black Maria — the world's first film studio

To feed his peephole cabinets, Dickson needed a place to film. In 1893, in the yard at West Orange, New Jersey, he built the Black Maria — the world's first purpose-built motion picture studio. It was a tar-paper shack, painted black inside and out, with a hinged section of roof that could be flung open to admit sunlight directly onto the performer. Most remarkable of all, the whole building sat on a circular track and could be rotated by hand to follow the sun through the day, keeping the natural light raking the stage at the right angle.

Cramped, hot and noisy, it was nevertheless the prototype of every film studio that followed — a space designed solely to capture moving images. Performers travelled from across America to appear before Dickson's Kinetograph in this strange revolving shed.

Dickson's specific technical contributions

The 35mm film gauge. Dickson's choice of 35mm — established in 1891–92 by slitting Eastman's 70mm celluloid down the middle — became and remained the international standard. For roughly a century, virtually every professional movie was shot on 35mm film, and it remains in use by cinematographers today.

The sprocket-hole system. This is the quiet genius at the foundation of all cinema. By punching evenly spaced perforations along the film edges and engaging them with a toothed sprocket, Dickson ensured every single frame was spaced identically and could be advanced, stopped, exposed and projected with absolute steadiness. Without it, film would slip and the image would dance unwatchably. It is the fundamental enabling technology of the moving image.

Working with Eastman's film. The marriage of Eastman's flexible celluloid (1889) and Dickson's sprocketed camera mechanism is, quite literally, the combination that created cinema.

The Dickson–Edison split and the Lumière brothers

Then came the strategic blunder that shaped film history. Edison patented the Kinetoscope in the United States but declined to pay the extra cost of patenting it internationally — especially in Europe. When Kinetoscopes arrived in Europe in 1894, the door was wide open.

In Lyon, the photographic manufacturers Auguste and Louis Lumière saw the opportunity. Their father Antoine had seen the Kinetoscope demonstrated in Paris and challenged his sons to do better. They did: their Cinématographe was a lightweight, three-in-one device that could record, print and — decisively — project film onto a screen for a whole audience. On 28 December 1895, at the Salon Indien of the Grand Café in Paris, the Lumières held the first commercial projected film screening. As the Institut Lumière in Lyon records, their 'n°1' Cinématographe 'screened the first ten films on the evening of 28 December 1895 at the Grand Café in Paris in front of 33 curious people who became the first spectators'. This is traditionally regarded as the birth of cinema as a shared, theatrical experience.

The honest distinction is this: Dickson and Edison had a working motion-picture camera, a viable film format and a commercial viewing device in place by 1893–94 — but for one viewer at a time. The Lumières were first to project moving pictures to an audience. Both were essential steps; neither alone is 'the invention of cinema'.

Dickson, meanwhile, had fallen out with Edison. In 1894 he became covertly involved with the rival Latham brothers. When Edison's general manager discovered the disloyalty, Dickson reportedly challenged Edison to choose between them — and lost. He left Edison's employ in April 1895 and helped found the American Mutoscope Company (later American Mutoscope & Biograph, then simply Biograph), which became Edison's most formidable rival.

Legacy

Cinema became one of the defining art forms and industries of the modern world. According to U.K. film-research firm Gower Street Analytics, the global box office generated around $30 billion in 2024 — and that is only the ticket-sales tip of a vastly larger film and screen economy.

So who invented cinema? The honest answer is that it was a collaborative, international achievement with many hands — Muybridge, Marey, Edison, Dickson, the Lumières, Le Prince and others. But within that story, Dickson's specific contributions — the Kinetograph camera, the 35mm gauge and the sprocket system — are foundational and enduring. As the Linda Hall Library puts it, modern historians have 'established that both the Kinetoscope and the Kinetograph were essentially invented by Dickson'.

For decades he was nearly written out of the story; histories up to the 1960s gave Edison sole credit. His rehabilitation came through the research of Gordon Hendricks, Charles Musser and especially Paul Spehr, whose definitive 2008 biography is tellingly titled The Man Who Made Movies: W.K.L. Dickson. In 1996 the US Postal Service honoured him on a 'Pioneers of Communication' stamp for motion pictures — notably choosing Dickson, not Edison. In 2025, the 68mm Mutoscope and Biograph films held by the BFI, Eye Filmmuseum, MoMA and France's CNC were inscribed on UNESCO's Memory of the World Register.
